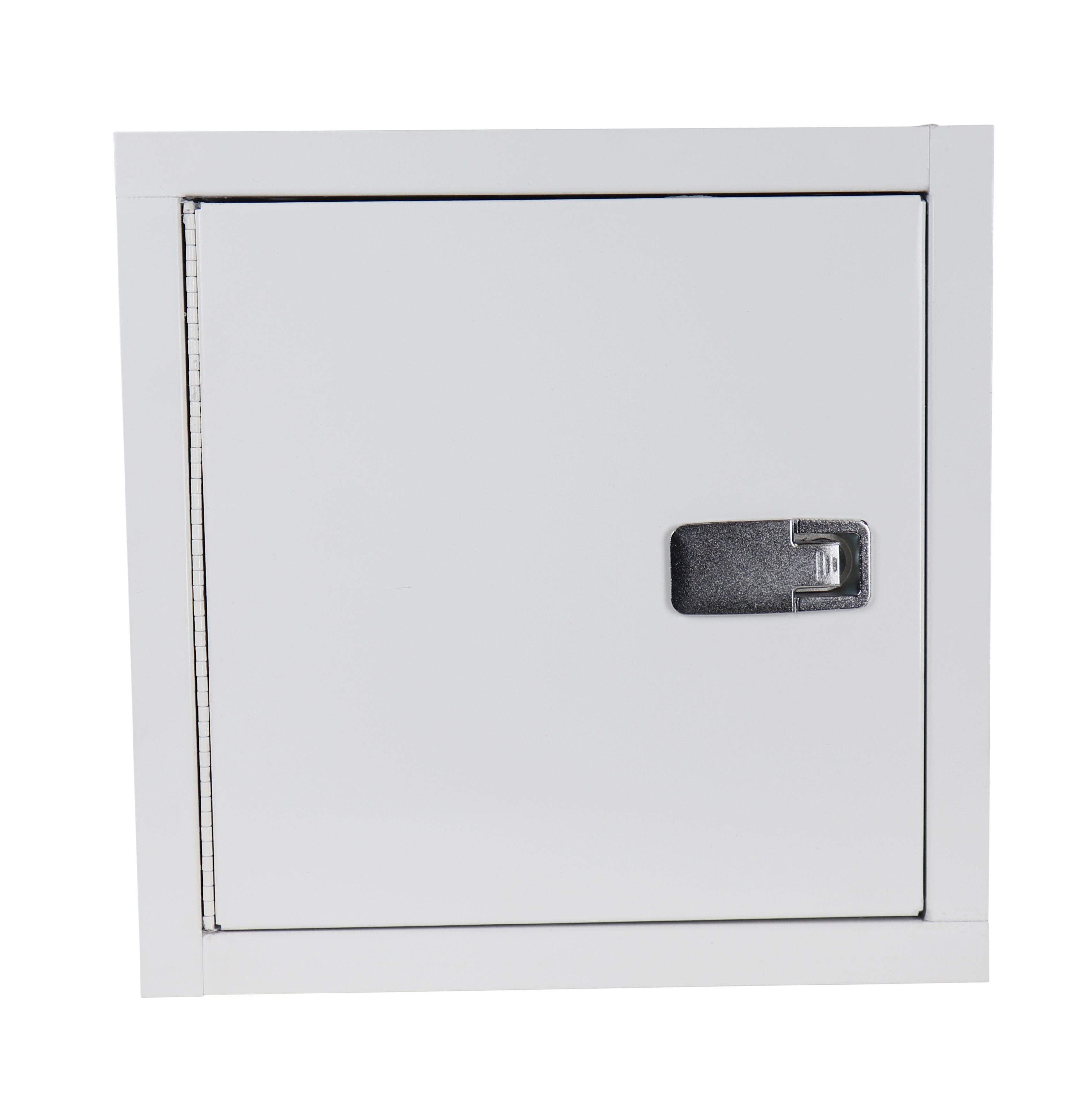

EXT — Exterior Access Doors
Assets/Details
Milcor EXT door provides critical service access for your exterior building walls. Tested
for weather resistance and also has a locking option where security may be an issue
Specifications
• Material: 16-gauge Galvanized frame with 18-gauge galvanized door panel
• Finishes: Available in powder coated white or Stainless Steel
• Hinge: Continuous Piano Hinge providing up to 130 degrees of opening for access
• Latch: Chrome plated compression latch with gasket. Available key locking latch
option with 2 keys
• Gasket: EPDM foam gasket for weather barrier
• Insulation: Foil faced polyisocyanurate provides an R value of 12 (up to 15 with proper
reflective air space)
• Testing: Independent lab tested in accordance to ASTM E 331-00 water penetration
tests
• Optional Colors: Grey, Gold Sand and Jet Black
Exterior Access Door
| Compression Latch | Locking Compression | ||||||
|---|---|---|---|---|---|---|---|
| Door Size (Second Dimension is Hinge Side) | Masonry Opening | Stud Opening | Product No. | Description | Product No | Description | Lbs. |
| 12" x 12" | 12 1⁄2” x 12 1⁄2” | 12 3⁄8” x 12 3⁄8” | 3209012 | EXT CMP 12X12 G W | 3209112 | EXT LCMP 12X12 G W | 9 |
| 14" x 14" | 14 1⁄2" x 14 1⁄2" | 14 3⁄8" x 14 3⁄8" | 3209014 | EXT CMP 14X14 G W | 3209114 | EXT LCMP 14X14 G W | 10 |
| 18" x 18" | 18 1⁄2" x 18 1⁄2" | 18 3⁄8" x 18 3⁄8" | 3209018 | EXT CMP 18X18 G W | 3209118 | EXT LCMP 18X18 G W | 13 |
| 24" x 24" | 24 1⁄2" x 24 1⁄2" | 24 3⁄8" x 24 3⁄8" | 3209024 | EXT CMP 24X24 G W | 3209124 | EXT LCMP 24X24 G W | 20 |
| 24" x 36" | 24 1⁄2" x 36 1⁄2" | 24 3⁄8" x 36 3⁄8" | 3209034 | EXT CMP 24X36 G W | 3209134 | EXT LCMP 24X36 G W | 27 |
| 30" x 30" | 30 1⁄2" x 30 1⁄2" | 30 3⁄8" x 30 3⁄8" | 3209030 | EXT CMP 30X30 G W | 3209130 | EXT LCMP 30X30 G W | 28 |
| 36" x 36" | 36 1⁄2" x 36 1⁄2" | 36 3⁄8" x 36 3⁄8" | 3209036 | EXT CMP 36X36 G W | 3209136 | EXT LCMP 36X36 G W | 38 |
| 30" x 48" | 30 1⁄2" x 48 1⁄2" | 30 3⁄8" x 48 3⁄8" | 3209038 | EXT CMP 30X48 G W | 3209138 | EXT LCMP 30X48 G W | 41 |
Exterior Access Door - Stainless Steel
| Compression Latch | Locking Compression | ||||||
|---|---|---|---|---|---|---|---|
| Door Size (Second Dimension is Hinge Side) | Masonry Opening | Stud Opening | Product No. | Description | Product No | Description | Lbs. |
| 12" x 12" | 12 1⁄2” x 12 1⁄2” | 12 3⁄8” x 12 3⁄8” | 3209412 | EXT CMP 12X12 S N | 3209452 | EXT LCMP 12X12 S N | 9 |
| 14" x 14" | 14 1⁄2" x 14 1⁄2" | 14 3⁄8" x 14 3⁄8" | 3209414 | EXT CMP 14X14 S N | 3209454 | EXT LCMP 14X14 S N | 10 |
| 18" x 18" | 18 1⁄2" x 18 1⁄2" | 18 3⁄8" x 18 3⁄8" | 3209418 | EXT CMP 18X18 S N | 3209458 | EXT LCMP 18X18 S N | 13 |
| 24" x 24" | 24 1⁄2" x 24 1⁄2" | 24 3⁄8" x 24 3⁄8" | 3209424 | EXT CMP 24X24 S N | 3209464 | EXT LCMP 24X24 S N | 19 |
