DWR — Recessed Door
360 VRs
DWR — Recessed Door
Assets/Details
Specs — White DWR Specs Doc (31 KB, DOCX)
LEED — LEED Checklist (283 KB, PDF)
Submittal Data — DWR Submittal (114 KB, PDF)
Advantages

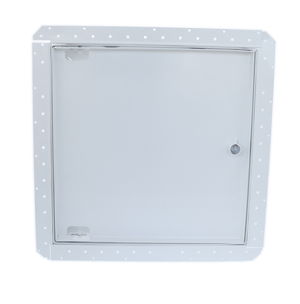

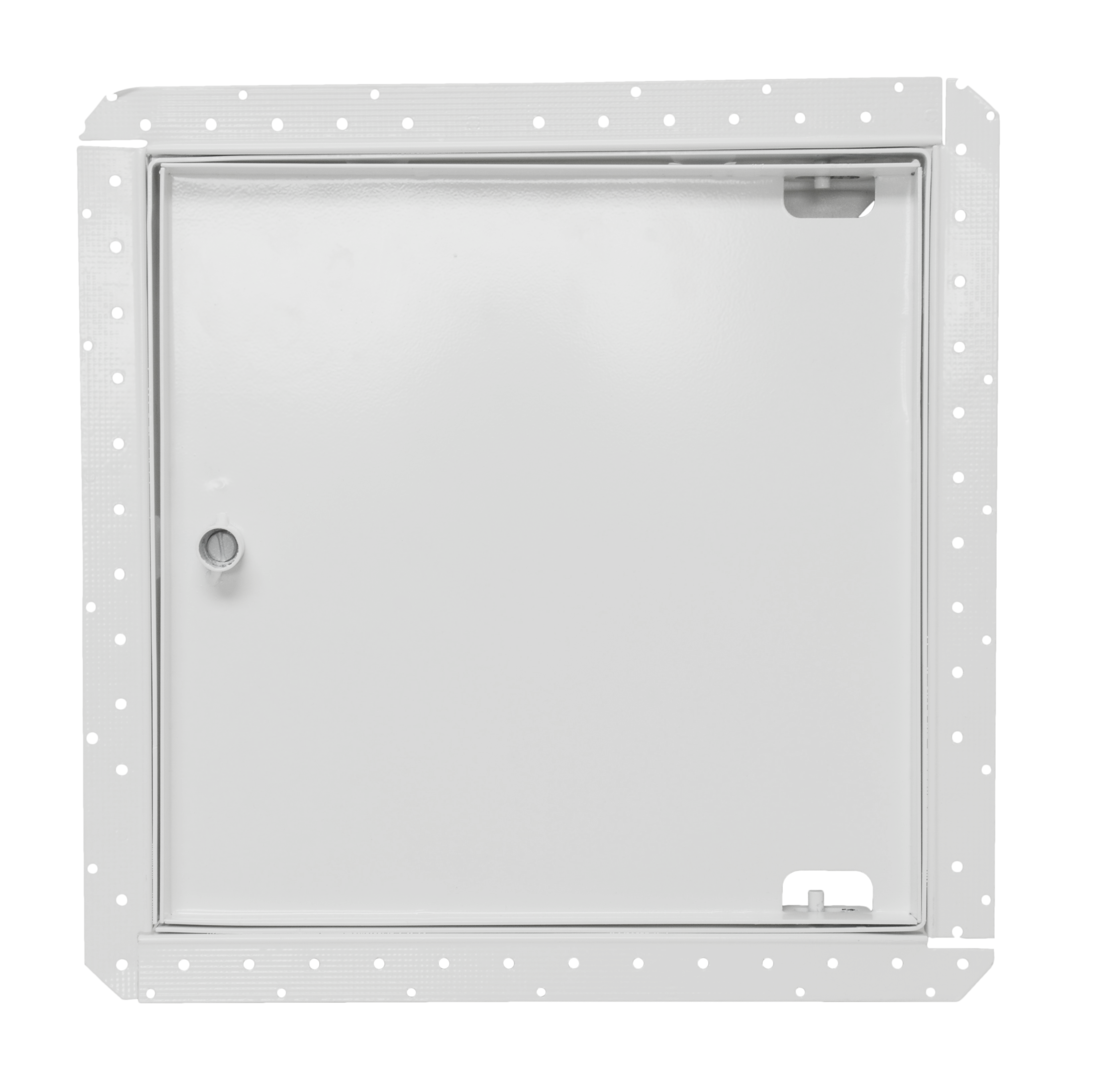

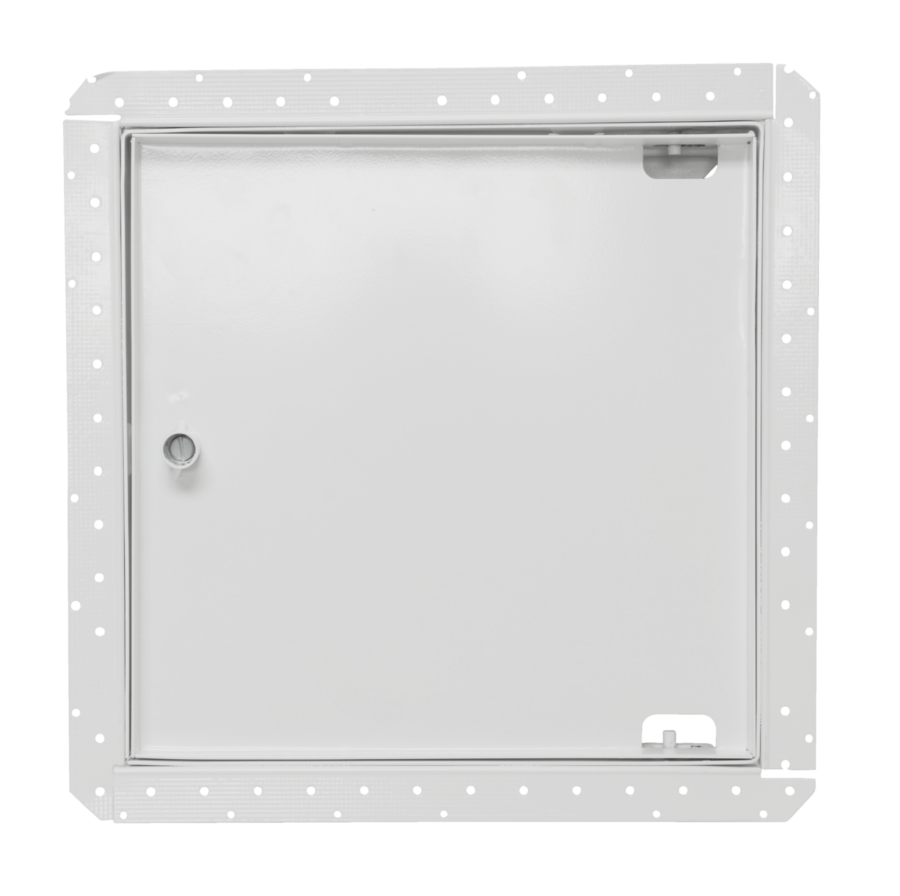

- Milcor’s Style DWR recessed panel access door is designed for concealed installation in drywall applications requiring sound absorption and a clean ceiling or wall appearance.
- Sound absorption is maintained by the field installed drywall panel inserted into the recessed door panels.
- When door panels are filled with drywall panels only the narrow frame edges are exposed creating a fire-resistive installation.
- Available in brilliant white.
Standard Sizes and Model Number
| Door Size* (2nd Dim. Hinge Side) | Opening | Model | Cam Locks | Shipping Weight Lbs. |
|---|---|---|---|---|
| 12" x 12" | 12 1/2" x 12 1/2" | 3207014 | 1 | 9 |
| 12" x 24" | 12 1/2" x 24 1/2" | 3207019 | 2 | 15 |
| 18" x 18" | 18 1/2" x 18 1/2" | 3207024 | 2 | 15 |
| 24" x 24" | 24 1/2" x 24 1/2" | 3207030 | 2 | 24 |
| 24" x 36" | 24 1/2" x 36 1/2" | 3207034 | 3 | 32 |
| 36" x 36" | 36 1/2" x 36 1/2" | 3207046 | 5 | 41 |
| 36" x 42" | 36 1/2" x 42 1/2" | 3207048 | 5 | 41 |
