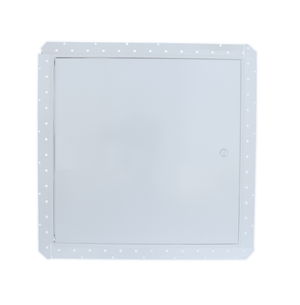

DW — Standard Flush Door
360 VRs
DW — Standard Flush Door
Assets/Details
LEED — LEED Checklist (283 KB, PDF)
Submittal Data — DW Access Door Submittal (224 KB, PDF)
Specs — White DW Specs Doc (32 KB, DOCX)
Advantages
- Flush panel means that door is unobtrusive in appearance.
- Outer frame has special drywall bead configuration so that drywall cement may be applied to cover and conceal the flange.
- Standard sizes fit standard wood stud or steel stud spacing of 12”, 16”, or 24” on center with no additional bracing.

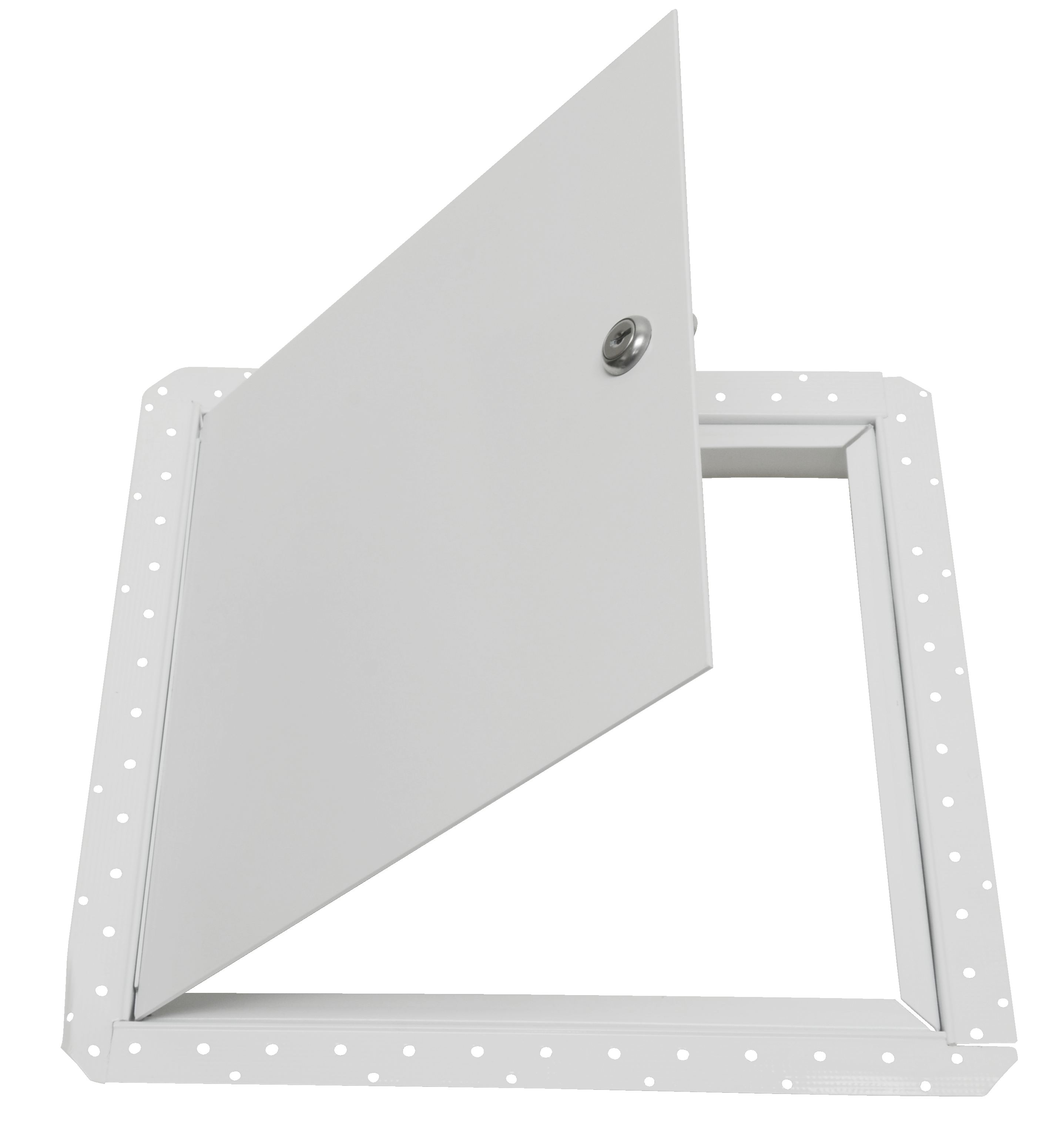

- Special double-acting concealed spring hinges allow opening to 175 degrees for complete access.
- The Milcor DW Access Door complements drywall construction in a flush wall or ceiling installation.
- Available in brilliant white, stainless steel and galvanized steel. Optional primed colors also include grey powder coated steel, gold sand and jet black.
Standard Sizes and Model Number
| Stud Spacing | Door Size* | Opening | Model | Shipping Weight Lbs. |
|---|---|---|---|---|
| 8" x 8" | 8 1/2" x 8 1/2" | 3203008 | 4 | |
| 12" OC | 10" x 10" | 10 1/2" x 10 1/2" | 3203010 | 5 |
| 12" x 12" | 12 1/2" x 12 1/2" | 3203012 | 6 | |
| 16" OC | 14" x 14" | 14 1/2" x 14 1/2" | 3203014 | 9 |
| 16" x 16" | 16 1/2" x 16 1/2" | 3203016 | 10 | |
| 18" x 18" | 18 1/2" x 18 1/2" | 3203017 | 12 | |
| 24" OC | 22" x 22" | 22 1/2" x 22 1/2" | 3203018 | 17 |
| 26" OC | 24" x 24" | 24 1/2" x 24 1/2" | 3203019 | 19 |
| 24" x 36" | 24 1/2" x 36 1/2" | 3203036 | 28 |
One cam lock centered at top and bottom of panel; balance of cam locks on side opposite hinge.
