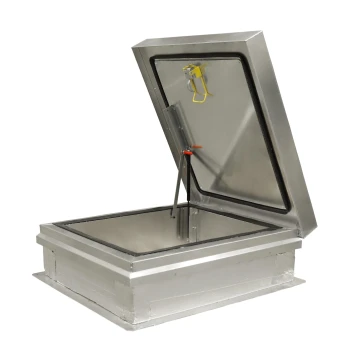

Thermal Pro—24

Features and Benefits

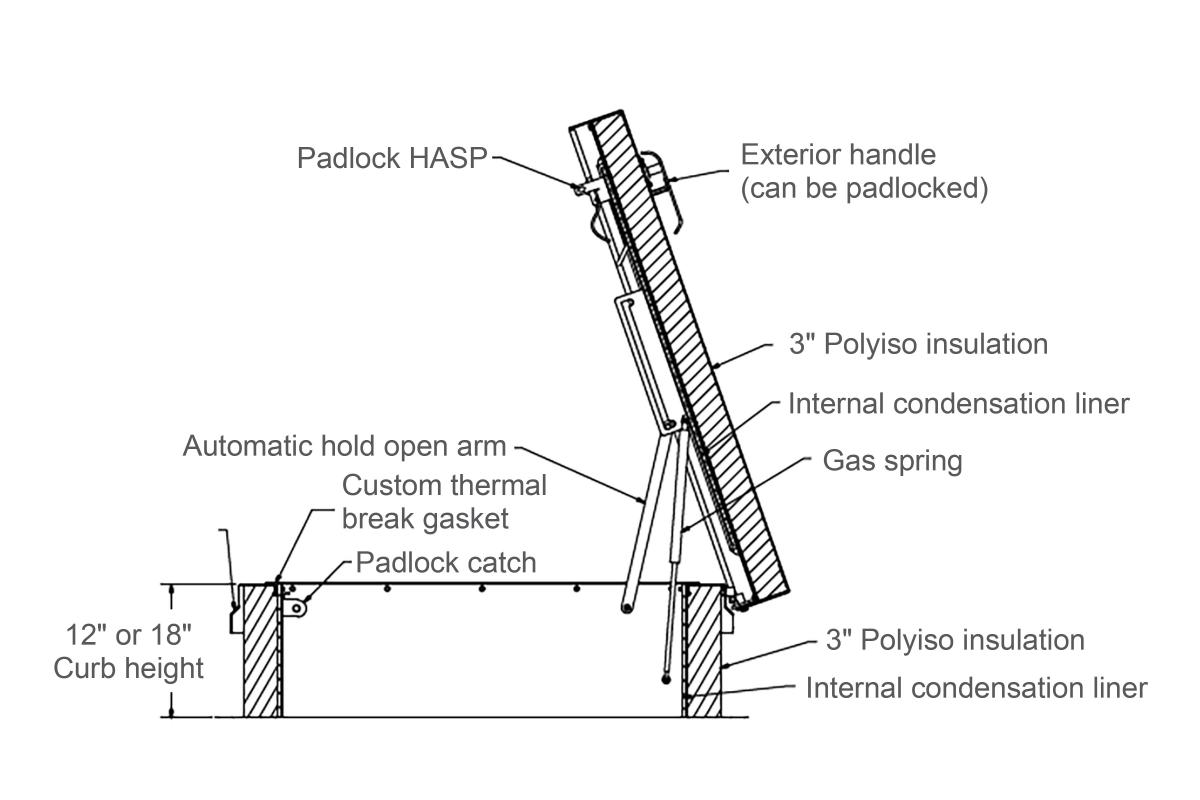

• Material: 0.090 Aluminum Cover and Curb

• Finish: Mill Finish Aluminum

• Cover

  • Opens easily to 68 degrees for ladder access sizes and 85 degrees for stair access sizes.

  • .090 aluminum exterior and interior components with 3” polyisocyanurate insulation with condensation liner and thermal breaks

• Curb

  • 0.090 aluminum liner

  • 12” or 18" high curb

  • Integral counterflashing

  • 4-1/2” wide mounting flanges with pre-drilled hole

  • 3” polyisocyanurate insulation, with condensation liner and thermal breaks

• Gasket

  • Extruded EPDM rubber gasket adhered to cover.

  • Custom EPDM rubber curb gasket for thermal breaking curb.

• Hinges: Plated Steel Pintle Hinges

• Lift Assist: Cover operation is assisted by enclosed heavy-duty gas spring.

• Latches: Slam latch with interior and exterior handles and padlock hasp.

• Hardware: All hardware is zinc plated.

• Load capacity: 70 psf

• Thermal Resistance: Internal thermal breaking components and Patent Pending thermal impedance components, along with R-24 in insulation allows for extreme temperature change resistance.
