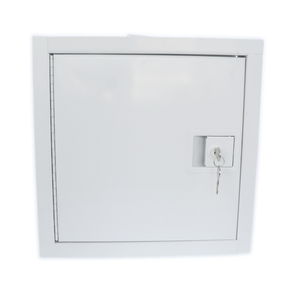

NIFR — Non-Insulated Fire-Rated Access Doors
Assets/Details
Specs — NIFR Access Door Specs (31 KB, DOCX)
LEED — LEED Checklist (283 KB, PDF)
Submittal Data — SD NIFR (118 KB, PDF)
Advantages
- Fire-Rated: Carries both UL and CUL 11/2 hour, Class B fire rating. Rating is maintained for a 2-hour wall with our non-insulated fire-rated access door, installed where temperature rise is not a factor. This door is designed for wall application only.
- Reduced Sound Transmission: The sandwich-type door panel provides the additional benefit of reduction in sound transmission through the access door.
- Automatic Panel Closer: A strong coil spring makes the door self-closing and self-latching. The convenient snap latch can be left locked or unlocked without affecting the closer seal.
- Choice of Finishes: Available in brilliant white and stainless steel. Optional primed colors include grey powder coated steel, gold sand and jet black.
- Milcor Non-insulated Fire-Rated Access Doors are designed to install easily and work perfectly in any wall from drywall to masonry.
Standard Sizes and Model Number
| Door Size | Masonry Opening | Stud Opening | Product No. | Description | No. Locks | Masonry Anchors | Shipping Weight Lbs. |
|---|---|---|---|---|---|---|---|
| 8" x 8" | 8 1⁄2" x 8 1⁄2" | 8 3⁄8" x 8 3⁄8" | 3219008 | NIFR P 8x8 CR W | 1 | 4 | 7 |
| 12" x 12" | 12 1⁄2" x 12 1⁄2" | 12 3⁄8" x 12 3⁄8" | 3219012 | NIFR P 12x12 CR W | 1 | 4 | 11 |
| 14" x 14" | 14 1⁄2" x 14 1⁄2" | 14 3⁄8" x 14 3⁄8" | 3219014 | NIFR P 14x14 CR W | 1 | 4 | 13 |
| 16" x 16" | 16 1⁄2" x 16 1⁄2" | 16 3⁄8" x 16 3⁄8" | 3219016 | NIFR P 16x16 CR W | 1 | 4 | 15 |
| 18" x 18" | 18 1⁄2" x 18 1⁄2" | 18 3⁄8" x 18 3⁄8" | 3219018 | NIFR P 18x18 CR W | 1 | 4 | 18 |
| 24" x 24" | 24 1⁄2" x 24 1⁄2" | 24 3⁄8" x 24 3⁄8" | 3219024 | NIFR P 24x24 CR W | 1 | 4 | 28 |
| 22" x 30" | 22 1⁄2" x 30 1⁄2" | 22 3⁄8" x 30 3⁄8" | 3219023 | NIFR P 22x30 CR W | 1 | 4 | 29 |
| 22" x 36" | 22 1⁄2" x 36 1⁄2" | 22 3⁄8" x 36 3⁄8" | 3219027 | NIFR P 22x36 CR W | 1 | 4 | 35 |
Mortise Lock Mechanism not available on Stainless Steel NFR
Note: Stainless steel not available with Mortise cylinder
