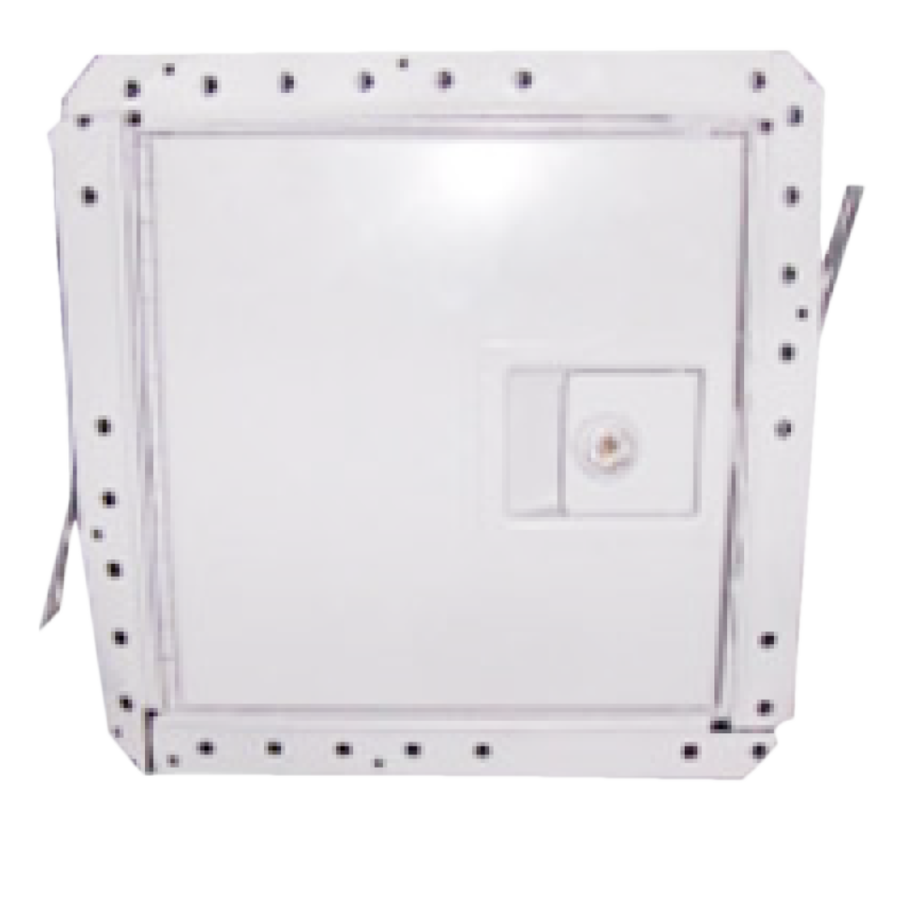

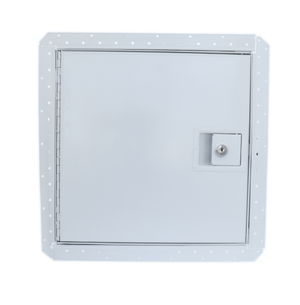

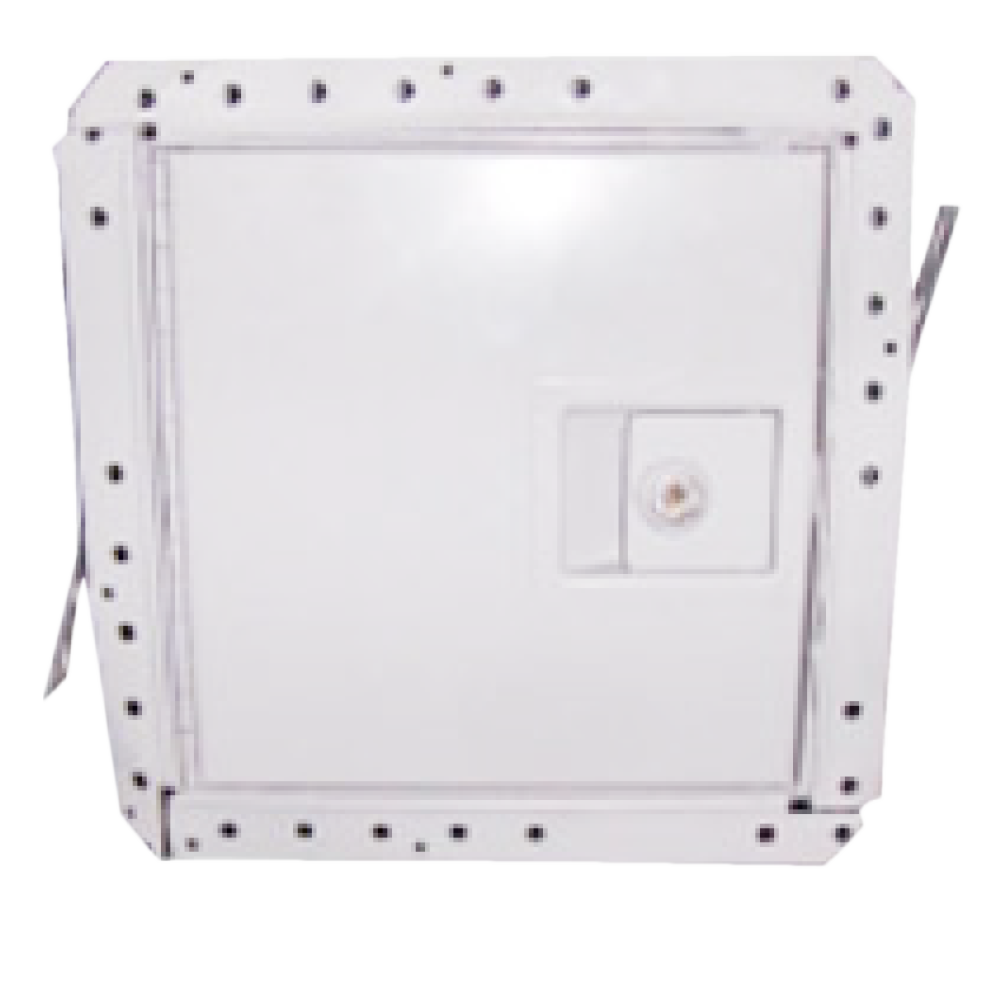

UFR DW — Fire Rated Access Door
360 VRs
UFR DW — Fire Rated Access Door
Assets/Details
Specs — UFR DW Access Door Specs (32 KB, DOCX)
Submittal Data — UFR-DW (159 KB, PDF)
LEED — LEED Checklist (283 KB, PDF)

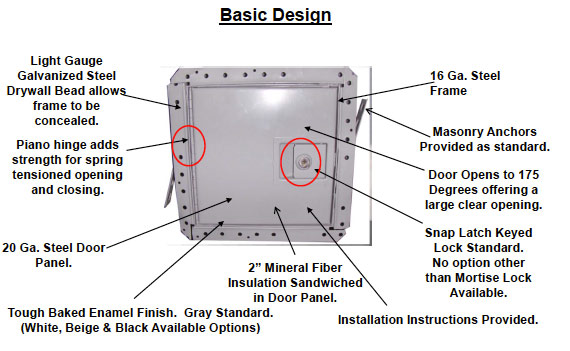

- Drywall bead fire rated doors have been increasingly specified in the past few years. Milcor responded by introducing the UFR-DW Style in 2008.
- Code approvals the same as with the UFR Style.
- Code approved for both walls and ceilings. Underwriters Laboratory Class B, 1-1/2 hour rating meets UBC, IBCO and BOCA codes for two hour rated walls.
- Installs easily and works perfectly in any wall, any ceiling, any construction.
- Needs no separate springs.
- Warnock Hersey acceptance in three-hour rated ceilings.
- Self-closing and self-latching door to meet the requirements of fire rated assemblies.
- UL Certified 250°temperature rise for true fire safety.
- Mineral fiber insulation provides acoustical sound dampening
- Sizes 8" x 8" to 48" x 48" (Special sizes available).
Standard Sizes and Model Number
| Door Size | Masonry Opening | Stud Opening | Product No. | Description | No. Locks | Masonry Anchors | Shipping Weight Lbs. |
|---|---|---|---|---|---|---|---|
| 8" x 8" * † | 8 1⁄2" x 8 1⁄2" | 8 3⁄8" x 8 3⁄8" | 3217010 | UFR DW P 8x8 CR W | 1 | 4 | 8 |
| 12" x 12" | 12 1⁄2" x 12 1⁄2" | 12 3⁄8" x 12 3⁄8" | 3217012 | UFR DW P 12x12 CR W | 1 | 4 | 12 |
| 12" x 24" | 12 1⁄2" x 24 1⁄2" | 12 3⁄8" x 24 3⁄8" | 3217020 | UFR-DW P 12x24 CR W | 1 | 4 | 19 |
| 14" x 14" | 14 1⁄2" x 14 1⁄2" | 14 3⁄8" x 14 3⁄8" | 3217014 | UFR DW P 14x14 CR W | 1 | 4 | 15 |
| 16" x 16" | 16 1⁄2" x 16 1⁄2" | 16 3⁄8" x 16 3⁄8" | 3217016 | UFR DW P 16x16 CR W | 1 | 4 | 17 |
| 18" x 18" | 18 1⁄2" x 18 1⁄2" | 18 3⁄8" x 18 3⁄8" | 3217018 | UFR DW P 18x18 CR W | 1 | 4 | 21 |
| 22" x 30" | 22 1⁄2" x 30 1⁄2" | 22 3⁄8" x 30 3⁄8" | 3217022 | UFR DW P 22x30 CR W | 1 | 4 | 35 |
| 22" x 36" | 22 1⁄2" x 36 1⁄2" | 22 3⁄8" x 36 3⁄8" | 3217027 | UFR DW P 22x36 CR W | 1 | 4 | 40 |
| 24" x 24" | 24 1⁄2" x 24 1⁄2" | 24 3⁄8" x 24 3⁄8" | 3217024 | UFR DW P 24x24 CR W | 1 | 4 | 32 |
| 24" x 30" | 24 1⁄2" x 30 1⁄2" | 24 3⁄8" x 30 3⁄8" | 3217023 | UFR DW P 24x30 CR W | 1 | 4 | 38 |
| 24" x 36" | 24 1⁄2" x 36 1⁄2" | 24 3⁄8" x 36 3⁄8" | 3217028 | UFR DW P 24x36 CR W | 1 | 4 | 42 |
| 24" x 48" * | 24 1⁄2" x 48 1⁄2" | 24 3⁄8" x 48 3⁄8" | 3217031 | UFR DW P 24x48 CR W | 2 | 6 | 50 |
| 30" x 30" * | 30 1⁄2" x 30 1⁄2" | 30 3⁄8" x 30 3⁄8" | 3217030 | UFR DW P 30x30 CR W | 1 | 4 | 42 |
| 32" x 32" * | 32 1⁄2" x 32 1⁄2" | 32 3⁄8" x 32 3⁄8" | 3217032 | UFR DW P 32x32 CR W | 1 | 4 | 45 |
| 36" x 36" * | 36 1⁄2" x 36 1⁄2" | 36 3⁄8" x 36 3⁄8" | 3217036 | UFR DW P 36x36 CR W | 1 | 4 | 47 |
| 36" x 48" * | 36 1⁄2" x 48 1⁄2" | 36 3⁄8" x 48 3⁄8" | 3217038 | UFR DW P 36x48 CR W | 2 | 6 | 70 |
| 48" x 48" * | 48 1⁄2" x 48 1⁄2" | 48 3⁄8" x 48 3⁄8" | 3217048 | UFR DW P 48x48 CR W | 2 | 8 | 88 |
*Wall rating only
†Not available with Mortise cylinder
Note: Stainless steel not available with Mortise cylinder
