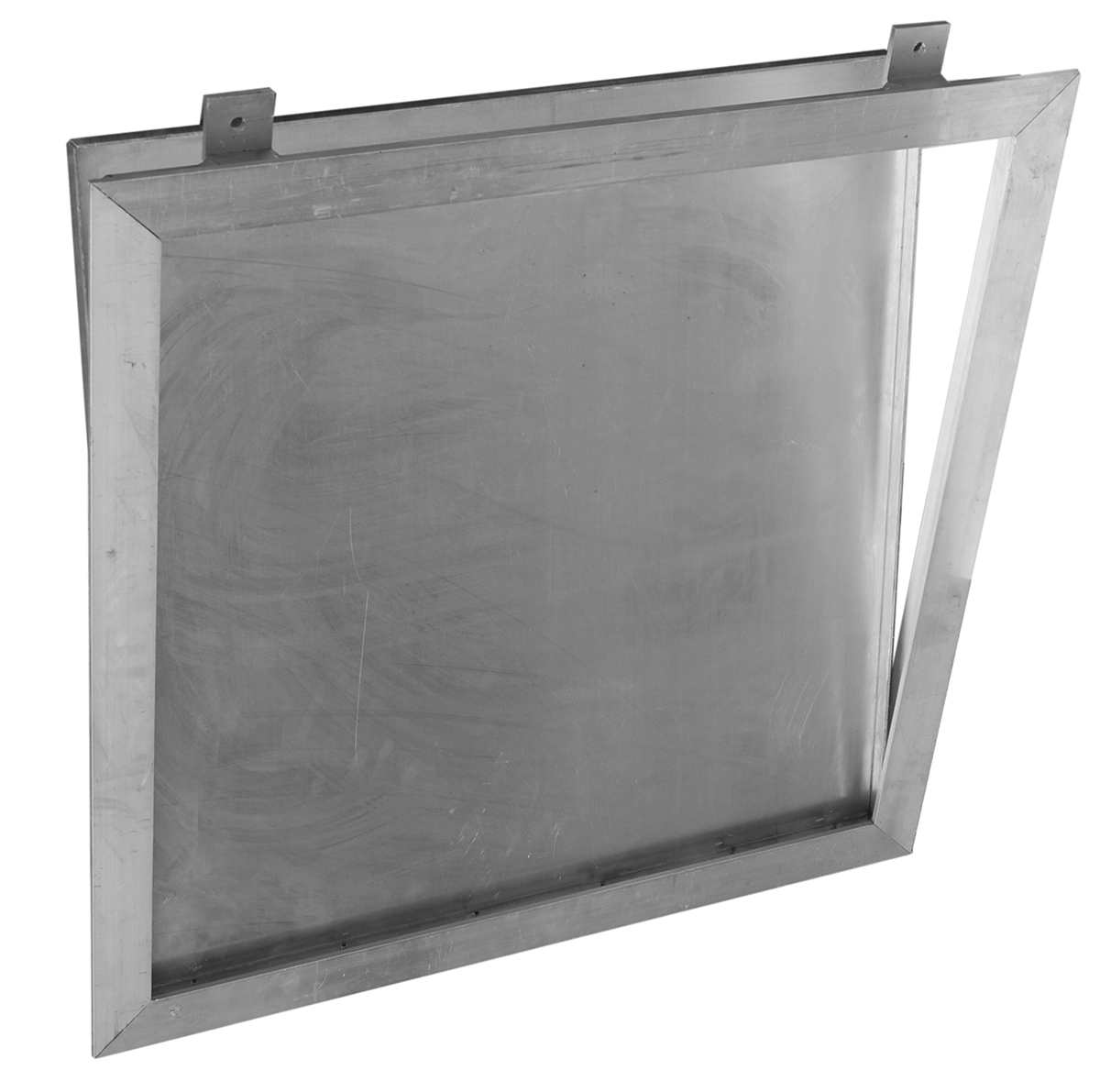

CT — Aluminum Doors for Suspended Ceiling
CT — Aluminum Doors for Suspended Ceiling
Assets/Details
LEED — LEED Checklist (283 KB, PDF)
Submittal Data — SD CT (44 KB, PDF)
Specs — CT Aluminum Access Door for Suspended Ceiling (32 KB, DOCX)
Advantages
- Milcor aluminum ceiling access doors provide convenient access to services or controls located in ceilings. Model CT is designed for use in suspended tile ceilings.
- Units are installed by bolting the hanger brackets to the hanger rods furnished and installed by the ceiling contractor.
- Aluminum cover and frame with stainless steel hinges produce a strong, lightweight, corrosion-resistant assembly.
- Continuous hinges, opening upward or, if desired, downward hinges are available.
- Frame flange serving as a support ledge for the tile.
Standard Sizes and Model Number
| Leaf Type | Dimensions** (Center-to-center of angles or tees) | Model | Shipping Weight Lbs. |
|---|---|---|---|
| Single | 2'6" x 2'6" | CT-1 | 35 |
| Single | 2'6" x 3'0" | CT-2 | 40 |
| Double | 2'6" x 2'6" | CT-3 | 45 |
*Add upswing or downswing to product number to identify swing desired
**Second dimension is on hinge side
