AT — Recessed Steel
AT — Recessed Steel
Assets/Details
Specs — White AT Specs Doc (31 KB, DOCX)
LEED — LEED Checklist (283 KB, PDF)
Submittal Data — Submittal AT (57 KB, PDF)
Advantages

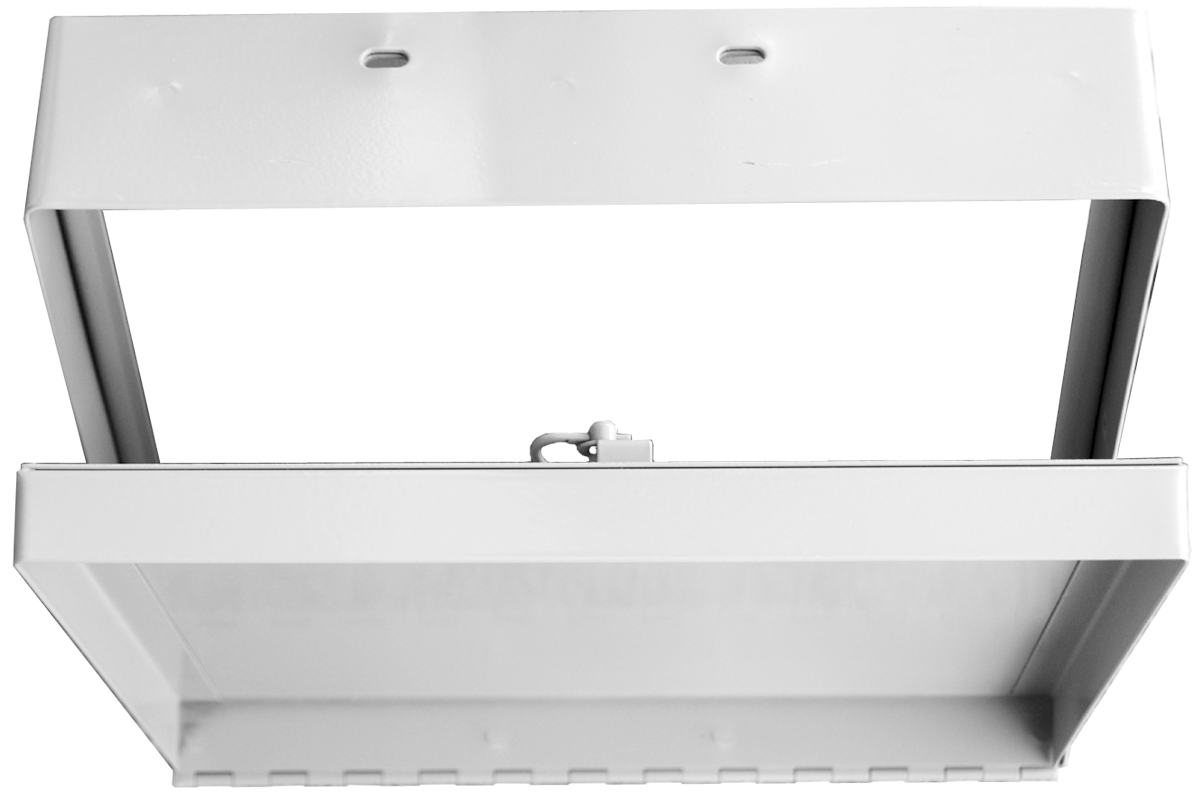

- Milcor AT access doors for acoustical tile ceilings provide a virtually concealed installation.
- Recessed door panels receive a covering of acoustical tile, leaving only the narrow edges exposed to keep acoustical surface intact and contribute to sound control and appearance.
- Plastic grommet protects the hole made in tile for access to cam lock control.
- Cylinder lock with two keys furnished in place of a cam latch, available at slight extra charge.
Standard Sizes and Model Number
| Door Size* | Ceiling Opening | Model | Locks | Shipping Weight Lbs. |
|---|---|---|---|---|
| 12" x 12" | 12 1/4" x 12 1/4" | 3205014 | 1 | 7 |
| 12" x 24" | 12 1/4" x 24 1/4" | 3205019 | 2 | 12 |
| 18" x 18" | 18 1/4" x 18 1/4" | 3205024 | 2 | 11 |
| 24" x 24" | 24 1/4" x 24 1/4" | 3205030 | 2 | 19 |
| 24" x 36" | 24 1/4" x 36 1/4" | 3205034 | 3 | 26 |
* Add "AT" to door size to indicate style desired
