3211 — Security or Detention Doors
360 VRs
3211 — Security or Detention Doors
Assets/Details
Specs — White 3211 Specs Doc (31 KB, DOCX)
Milcor — security door submittal (80 KB, PDF)
LEED — LEED Checklist (283 KB, PDF)
Advantages

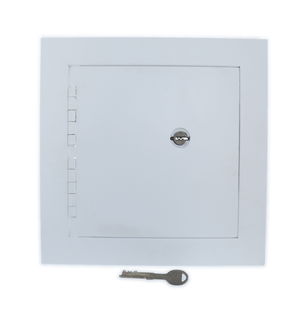

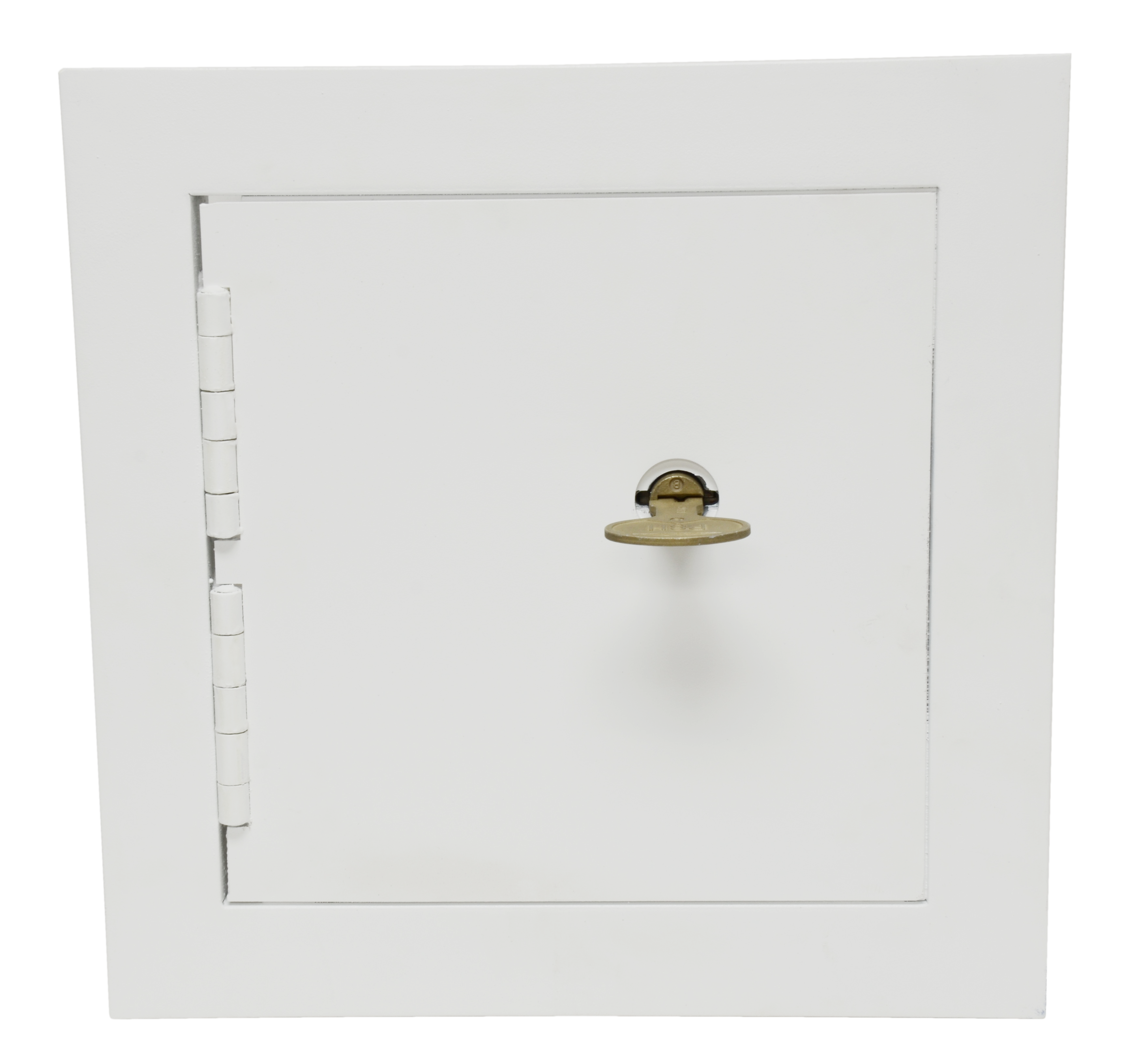

- Milcor security access doors for walls and ceilings provide critical security and tamperproof access where security is of primary importance.
- Special stainless steel butt hinge prevents removal of hinge.
- A detention-type deadbolt lock is an available option to prevent unauthorized access.
- Tamperproof screws are available when specified for additional security.
- Finishes: brilliant white.
Standard Sizes and Model Number
| Size | Frame Size | Opening | Model - With Detention Lock | Weight Lbs. | Model - With Tamperproof Screws | Weight Lbs. |
|---|---|---|---|---|---|---|
| 12" x 12" | 16" x 16" | 12 3/4" x 12 3/4" | 3211114 | 30 | 3211214 | 26 |
| 12" x 24" | 16" x 28" | 12 3/4" x 24 3/4" | 3211119 | 42 | 3211219 | 38 |
| 16" x 16" | 20" x 20" | 16 3/4" x 16 3/4" | 3211120 | 39 | 3211220 | 35 |
| 18" x 18" | 22" x 22" | 18 3/4" x 18 3/4" | 3211124 | 44 | 3211224 | 40 |
| 18" x 24" | 22" x 28" | 18 3/4" x 24 3/4" | 3211125 | 52 | 3211225 | 48 |
| 24" x 24" | 28" x 28" | 24 3/4" x 24 3/4" | 3211130 | 61 | 3211230 | 57 |
| 24" x 30" | 28" x 34" | 24 3/4" x 30 3/4" | 3211132 | 70 | 3211232 | 66 |
| 24" x 36" | 28" x 40" | 24 3/4" x 36 3/4" | 3211134 | 79 | 3211234 | 75 |
| 24" x 48" | 28" x 52" | 24 3/4" x 48 3/4" | 3211135 | 97 | 3211235 | 93 |
| 30" x 30" | 34" x 34" | 30 3/4" x 30 3/4" | 3211138 | 80 | 3211238 | 76 |
| 36" x 36" | 40" x 40" | 36 3/4" x 36 3/4" | 3211146 | 102 | 3211246 | 98 |
| 36" x 48" | 40" x 52" | 36 3/4" x 48 3/4" | 3211150 | 127 | 3211250 | 123 |
