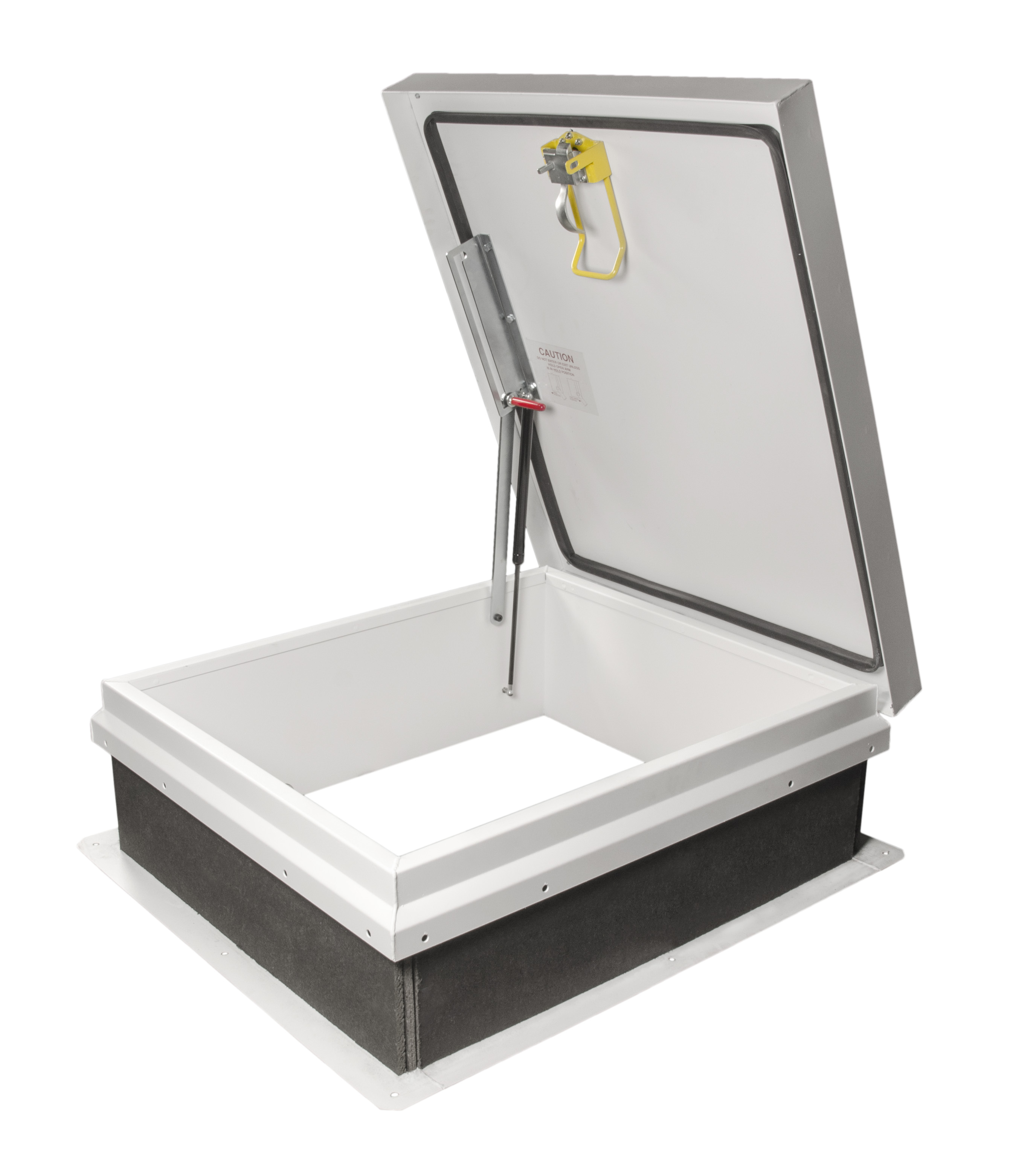

Single Leaf Hatch

Assets/Details

Performance Data — Quick Reference (40 KB, PDF)

Submittal Data — SD Single Leaf spring mounted in frame (5 MB, PDF)

Submittal Data — SD Single Leaf spring mounted in cover (668 KB, PDF)

Access and Ventilation
Provides convenient access to the building’s roof. Maybe open for auxiliary ventilation.
Complete Seal
Heavy, mechanically-applied weather seal provides a barrier to weather and drafts. Latches with inside and outside handles hold hatches tightly closed, allowing easy access from inside or outside the hatch.
Choice of Materials
Hatches are available in galvanized steel, aluminum, aluminum cover with galvanized curb or stainless steel.

Milcor EE hatch

Spring Mounted in Frame

Multiple Sizes
Using heavy-duty enclosed torsion spring design, which is mounted in the hatch frame, the opening assist is especially enhanced when used on larger units.
Powerful Load Capacity
RB, RD and RC models handle live loads up to 40 psf, standard industry strength. Milcor’s M, RBS RCS and RDS models, with composite cover design, provide load-carrying strengths to 70 psf.
High Thermal Efficiency
M, RBS, RBS-S, RDS-S and RCS covers are liner bonded to a 1 or 2 inch core of rigid styrofoam-type insulation for high efficiency thermal protection. RB, RD and RC covers contain the industry standard 1” of rigid fiberglass insulation. Both types keep the heat in during the winter and the heat out in the summer. Curbs have 1” exterior fiberboard as a standard feature.
Custom Units
Hatches can be fabricated in special sizes, shapes or other modifications to meet special needs such as are required with:

Smoke hatches
High Security
Corrosive Environments
Curb Mounted Units
Skylight domes
Metal roofs

Spring Mounted in Cover

Unobstructed Opening
Narrow hold-open arm and torsion bar are mounted out of the way in the cover. Hasp is clear of opening
High Load Capacity
The composite cover design on M, RBS, RCS and RD-1 MOdels provides load-carrying strengths to 70 psf.
Easy, Complete, Opening
Covers open easily to 90 degrees. Torison spring and automatic hold-open arms assist operation and keep doors securely open.
High Thermal Efficiency
Covers are insulated with 1 inch of high efficiency styrofoam insulatio. Keeps heat in during the winter and repels heat in summer. Frames are insulated with 1 inch exterior fiberboard insulation.
Custom Units
Hatches can be fabricated in special sizes; shapes or other modifications to meet special needs such as are required for:

Metal Roofs
Domed Units
High Security
Corrosive Environments
Curb Mounted Units
Higher r-value insulation

Standard Sizes and Model Number for Spring Mounted in Frame*

	3'0" x 2'6"		3'0" x 3'0"		4' 0" x 4' 0"		2' 6" x 4' 6"		2' 6" x 8'0"
Materials	Model No	Lbs	Model No	Lbs	Model No	Lbs	Model No	Lbs	Model No	Lbs
Galvanized Steel	RB-1	205			RB-4x4	365	RB-2	255	RB-3	425
Galvanized Steel					M-7	365	M-2	265	M-3	395
Galvanized Steel	RBS-S (Smoke)	155			RBS-4x4	271	RBS-2	225	RBS-3	335
Alum Cover/ Galv Curb							RCS-2	140	RCS-3	230
Alum Cover/ Galv Curb	RC-1	160					RC-2	174	RC-3	307
Alum Cover and Curb	RDS-S (Smoke)	85	RD-3x3	155			RD-2	136	RD-3	248

*Special made-to-order sizes available for each model
**Covers larger than 4'6" have a 2-point snap latch with inside and outside handles and inside padlock hasp.

Standard Sizes and Model Number for Spring Mounted in Cover*

	3'0" x 2'6"		3'0" x 3'0"
Materials	Model No	Lbs	Model No	Lbs
Galvanized Steel, Prime Painted	M-1	185	M-3x3	254
Galvanized Steel, Prime Painted	RBS-1	155
Aluminum Cover, Galvanized Curb	RCS-1	120	RCS-3x3	190
Aluminum Cover and Curb	RD-1	125

*Special made-to-order sizes available for each model
