3601/3602 — Versatile Valve Box
360 VRs
3601/3602 — Versatile Valve Box
Assets/Details
Specs — White Valve Specs Doc (31 KB, DOCX)
LEED — LEED Checklist (283 KB, PDF)
Submittal Data — SD Valve (75 KB, PDF)
Advantages

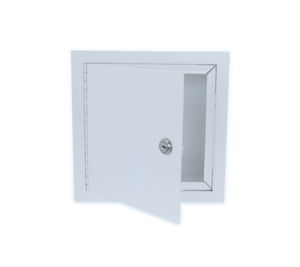

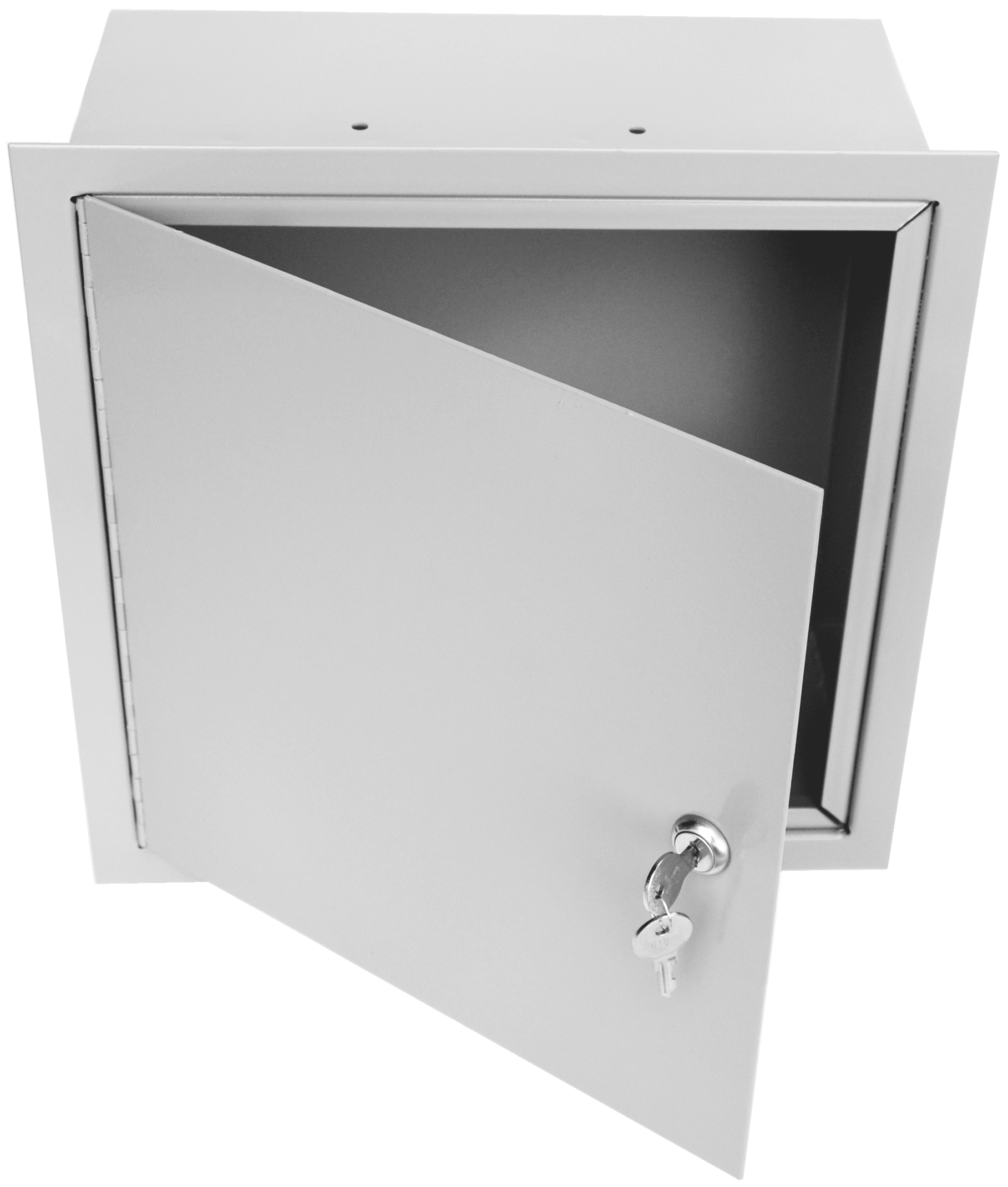

- Milcor’s Versatile Valve Box with one-piece frame is the standard for the industry. The design provides 100% clear opening with superior strength, rigidity and true square shape.
- The fully enclosing box keeps valves clean and clear from excess materials within the wall cavity.
- The door panel is mounted to the frame on a piano hinge that opens to 175 degrees for complete access without allowing the door to impact the wall.
- For easy opening, the unit comes standard with a cylinder lock release mechanism which acts as a fingerhold assist in opening the door.
- Available in brilliant white, stainless steel and galvanized steel. Optional primed colors also include grey powder coated steel, gold sand and jet black.
Standard Sizes and Model Number
| Door Size | Opening | Depth | Steel Model | Stainless Model | No. Cylinder Locks | Shipping Weight Lbs. |
|---|---|---|---|---|---|---|
| 8"x 8" | 8 5/8" x 8 5/8" | 4" | 36010084 | 36020084 | 1 | 11 |
| 8"x 8" | 8 5/8" x 8 5/8" | 6" | 36010086 | 36020086 | 1 | 13 |
| 8"x 8" | 8 5/8" x 8 5/8" | 8" | 36010088 | 36020088 | 1 | 15 |
| 12"x 12" | 12 5/8" x 12 5/8" | 4" | 36010124 | 36020124 | 1 | 14 |
| 12"x 12" | 12 5/8" x 12 5/8" | 6" | 36010126 | 36020126 | 1 | 16 |
| 12"x 12" | 12 5/8" x 12 5/8" | 8" | 36010128 | 36020128 | 1 | 18 |
| 14"x 14" | 14 5/8" x 14 5/8" | 4" | 36010144 | 36020144 | 1 | 20 |
| 14"x 14" | 14 5/8" x 14 5/8" | 6" | 36010146 | 36020146 | 1 | 23 |
| 14"x 14" | 14 5/8" x 14 5/8" | 8" | 36010148 | 36020148 | 1 | 27 |
| 16"x 16" | 16 5/8" x 16 5/8" | 4" | 36010164 | 36020164 | 1 | 23 |
| 16"x 16" | 16 5/8" x 16 5/8" | 6" | 36010166 | 36020166 | 1 | 26 |
| 16"x 16" | 16 5/8" x 16 5/8" | 8" | 36010168 | 36020168 | 1 | 30 |
